Product Details:
|
| Warranty: | 4 Years | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Restaurant, Food Shop | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
| Condition: | New | Application: | Food |
| Packaging Type: | Case | Packaging Material: | Wood |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V | Power: | 14kw |
| Weight: | 2500 KG | Dimension(L*W*H): | 2650*2250*2250mm |
| Key Selling Points: | Easy To Operate | Material Thickness: | 0.009-0.025mm |

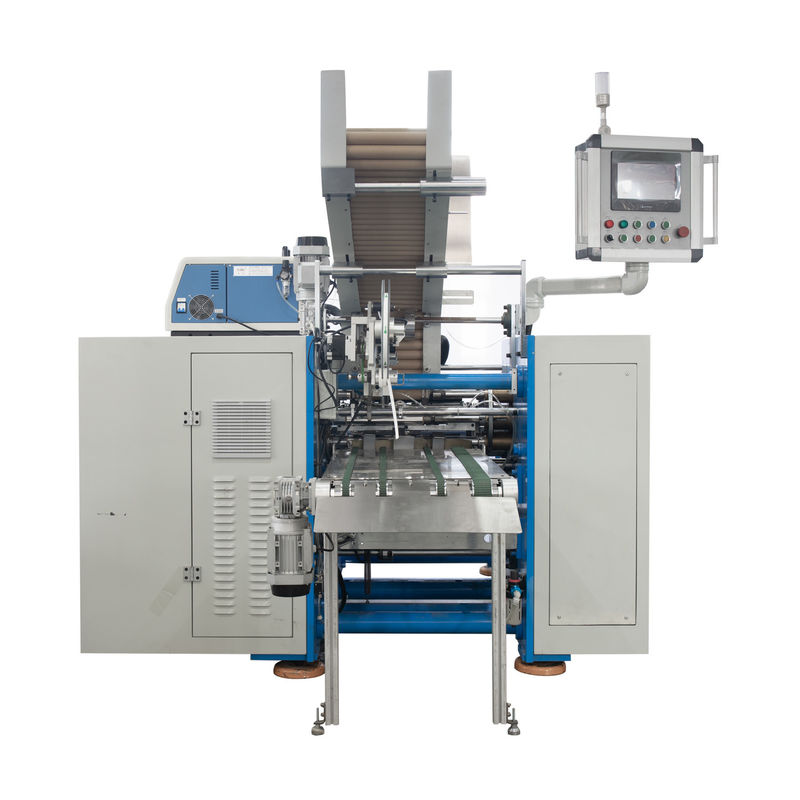

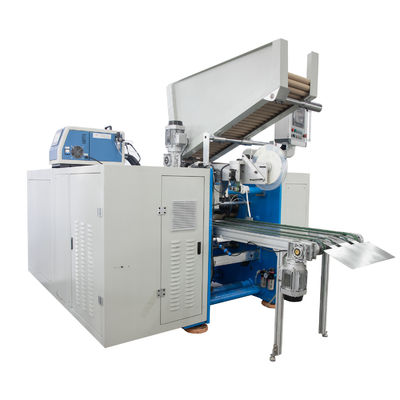

| Material Width: | 120-450mm | Product Name: | Aluminum Household Foil Rewinding Machine Full Automatic |
Item | Value |
Product Name | Aluminum Foil Rewinding Machine |
Thickness ofRaw Material | 0.009 -0.025mm |
Width of Raw Material | 120 -450mm |
Maximun Unwinding Diameter | 800mm |
Inner Diameter of Raw Material Roll Core | ф 75mm |
Inner Diameter of Finished Product Roll Core | ф25mm ф30mm. ф 38mm |
Cutting Length of Roll | 5 -300m |
Maximum production eficiengy | 550m/min |
Air Pressure | 0.7Mpa |
Total Power | approx 14KW |
Total Weight | approx 2500Kg |
Power supply | 380V/50Hz, 3ph; 220V/60HZ |
