Product Details:
|
| Warranty: | 4 Years | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Restaurant, Food Shop | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
| Condition: | New | Application: | Food |
| Packaging Type: | Case | Packaging Material: | Wood |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380 | Power: | 4.5kw |
| Weight: | 1700 KG | Dimension(L*W*H): | 4400*1500*2200mm |

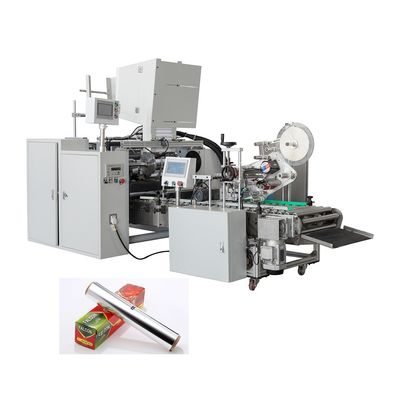

| Key Selling Points: | Easy To Operate | Product Name: | Aluminum Foil And Cling Film Rewinding Machine |
| Main Machine Size: | 1940*1550*2000mm | Magnetic Powder Brake: | 25N.m |
| Magnetic Powder Cluch: | 25N.m | Port: | Shanghai |
Item | Value |
Product Name | Aluminum Foil Rewinding Machine |
Magnetic Powder Brake | 25N.m |
Magnetic Powder Cluch | 25N.m |
Width of Raw Material | 100 -460mm |
Maximun Unwinding Diameter | ф600mm |
Inner Diameter of Raw Material Roll Core | ф75mm |
Cutting Length of Roll | 3- 300m |
Rewinding speed | 25pcs/minute(5m) |
Labeling speed | 40pcs/minute |
Decoil Centering Stroke | +/-20mm |

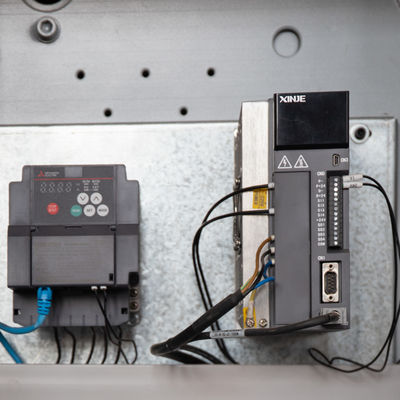

Engine Model | Siemens panel Mitsubishi servo,Mitsubishi PLC,Omron meter |
Rewinder Dimension | 1800*1500*2200mm |
Labeller Dimension | 2600*1160*1550mm |
