Product Details:
|
| Warranty: | 4 Years | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Packaging Industry | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
| Condition: | New | Packaging Type: | Case |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V |
| Power: | 1.5KW | Weight: | 1200 KG |
| Dimension(L*W*H): | 3200*1350*1600mm | Key Selling Points: | Easy To Operate |

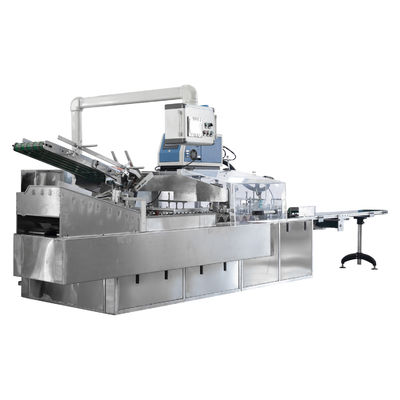

| Product Name: | Automatic Cartoning Machine Carton Packing Machine Automatic | Product Type: | FDF-110 |
| Production Efficiency: | 60 Boxes/min | Air Consumption: | 20m3/hour |
| Air Pressure: | 0.7mpa |
Item | Value |
Product Name | Automatic Cartoning Machine |
Carton Quality | 250-600g/ ㎡ |
Carton Maximum Size | 200*60*60mm |
Carton Minimum Size | 70*35*14mm |
Maximum production effcieng | 50-65boxes/min |
Air Consumption | 20m3/hour |
Air Pressure | 0.7Mpa |
Engine Model | OMRON Control |
Overal Dimension | 3200*1350*1600mm |
Total Power | approx 1.5KW |
Total Weight | approx 1200Kg |
