2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box

2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box
2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box

Large Image :  2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Finest
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $35,000.00/pieces 1-1 pieces
Packaging Details: wooden case
Supply Ability: 5 Set/Sets per Week
Contact Now

2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box

Description
Warranty: 4 Years Type: Other
Applicable Industries: Hotels, Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 4 Years Core Components: PLC, Motor
Condition: New Application: Commodity
Packaging Type: Film, Case Packaging Material: Plastic, Wood
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V Power: 14kw
Weight: 1200 KG Dimension(L*W*H): 2600*2100*1500
Key Selling Points: Easy To Operate Product Name: Saw Blade Cutter Fixing Machine
Product Type: HAFA-120 Usage: Making Carton
Machine Type: Semi Automatic Color: Customized

Product Description
The size of the fully automatic sawtooth nail machine is 2300mm in total length, 2000 mm in total width, 1800 mm in total height, and 1.5t in total weight.
2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 0





Electrical power and configuration:

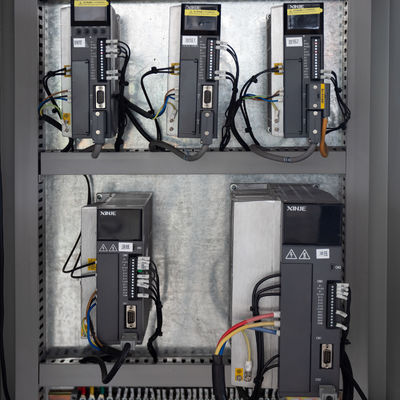

the electrical power of the whole machine is 12.5KW, and the voltage is 380V. The servo motor adopts the Korean LS (LG) brand, and the motion controller adopts the German BECKHOFF brand. The whole machine has a one-year warranty.





The mold material is Japanese made DC53 material, and the heat treatment is entrusted to a Japanese company for processing. The warranty period is 20 million molds.
2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 1
2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 2






Production speed:
Depending on the size of the product, the production speed per minute ranges from 70 to 90 times. The longer the product, the slower the speed; the shorter the product, the faster the speed.
2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 3

length of the color box：between 180 mm and 600 mm
width of the color box ： between 180mm and 400mm

2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box 4

Position: Any position within 60mm

Production operation instructions

The material of the serrated strip is tinplate or 5052 aluminum, and it is necessary to purchase roll packaging materials. Generally, the roll diameter of each roll of material is controlled within 900 millimeters. The machine has an automatic refueling system that specifically refuels materials to avoid mold damage. It is recommended to use stamping oil for aluminum foil lunch boxes, which is food grade and volatile. Before installation, it is necessary to prepare a 6-square meter five core wire and an 8mm gas pipe with a voltage of 380V.
Item
Value
Product Name
Saw Blade Press Machine
Product Type
HAFA-120
Power Source
Xinjie Servo Motor 7.5KW
Max.Material Width
450mm
Max.Material Diameter
600mm
Color box width range
200-350mm
Color box length range
150-450mm
Sawtooth length range
150-450mm
Sawtooth width range
6-8mm (Can be adjusted arbitrarily)
Speed
85-140 pcs/min
sensor
Panasonic
weight
1200kg
Feeding accuracy
0.1mm
Feeding Machine Power
14KW
Saw blade material
Tinplate/Aluminum
