Best Choice Easy to Operate Paper Carton Box Packing Machine with Air Pressure 0.7mpa

Large Image : Best Choice Easy to Operate Paper Carton Box Packing Machine with Air Pressure 0.7mpa

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Finest

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$28,000.00/sets 1-1 sets
Packaging Details:	Wooden case
Supply Ability:	5 Set/Sets per Week

Contact Now

Best Choice Easy to Operate Paper Carton Box Packing Machine with Air Pressure 0.7mpa

Description

Warranty:	4 Years	Type:	Other
Applicable Industries:	Packaging Industry	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	4 Years	Core Components:	PLC, Motor
Condition:	New	Packaging Type:	Case
Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V
Power:	1.5KW	Weight:	1200 KG
Dimension(LWH):	320013501600mm	Key Selling Points:	Easy To Operate
Product Name:	High Speed Aluminum Foil Roll Box Cartoning Machine	Production Efficiency:	65 Boxes/min
Air Consumption:	20m3/hour	Air Pressure:	0.7mpa
Port:	Shanghai

Products Description

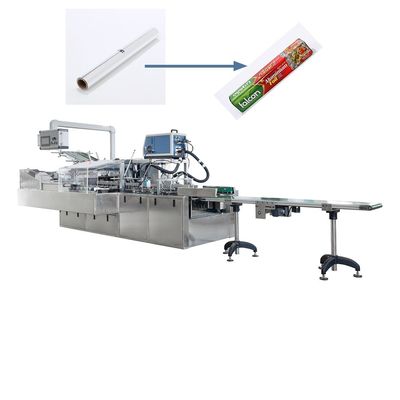

The machine is a new product developed by our company. It has wide application range, high efficiency, stable operation, and can be used for the packaging of aluminum foil, medicine, food and cosmetics.

Item	Value
Product Name	Automatic Cartoning Machine
Carton Quality	250-600g/ ㎡
Carton Maximum Size	2006060mm
Carton Minimum Size	703514mm
Maximum production effcieng	50-65boxes/min
Air Consumption	20m3/hour
Air Pressure	0.7Mpa
Engine Model	OMRON Control
Overal Dimension	320013501600mm
Total Power	approx 1.5KW
Total Weight	approx 1200Kg

1, can automatically complete the carton molding, open, box packing, sealing and so on. And can be hot melt adhesive system with hot melt adhesive sealing.

2, the machine using PLC control. Photoelectric monitoring of various parts of the action, abnormal operation, can automatically shut down to show the reasons in order to promptly troubleshooting.

3, the rack is equipped with the main drive motor and clutch brake, and the board is equipped with various parts of the transmission system torque overload protection, can be overloaded in the case, the main drive motor and the drive part of the disconnect, to ensure that the whole The safety of the machine.

4, the machine is equipped with intelligent detection device. No material automatically no less than the carton, convenient and the former equipment linked to work. In the detection process found that the empty box that is removed at the exit to ensure that the product quality to meet the requirements of qualified.

5, the machine can be based on the user's different requirements, can replace the packaging specifications, adjustment and debugging is simple, that is applicable to the production of large quantities of a single species
