Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding

Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding

Large Image :  Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Finest
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15,000.00/sets 1-1 sets
Packaging Details: wooden case
Supply Ability: 5 Set/Sets per Week

Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding

Description
Warranty: 4 Years Type: Other
Applicable Industries: Manufacturing Plant Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 4 Years Core Components: PLC, Motor
Condition: New Packaging Type: Case
Packaging Material: Wood Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Power: 2.2KW Weight: 1500 KG
Dimension(L*W*H): 8000*900*1300mm Key Selling Points: Easy To Operate
Product Name: Folding Gluing Machine Max. Workable Width: 350mm
Min.cutting Width: 40mm Max. Unwinding Diameter: 340mm
Production Capacity: 300 Times/min Port: Shanghai

Product Description

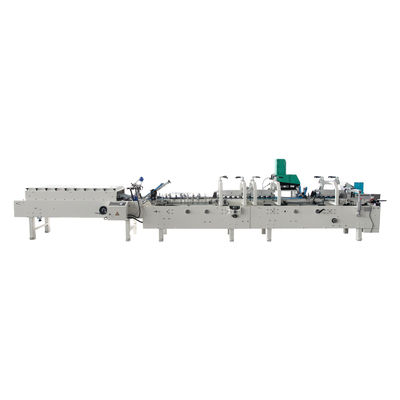

FDF series high-speed box pasting machine is designed and manufactured by our factory based on absorbing the advantages of domestic and foreign box pasting machines. It’s suitable for various paper boxes paste and automatic forming, with the features of reasonable structure, strong suitability, convenient operation and quick speed etc. and it is an ideal box pasting equipment after printing.
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 0
Characteristics of the product:
1.The whole machine is reasonable on design, low rate on breakdown and saving on electricity. 2.The speed adjustment can be finished for once and the front, middle and behind drives of the equipment are synchronic totally, so it’s very convenient to operate. 3.The electric control is advanced and the front and behind of the equipment all can control the running of paper feeding part. When the paper feeding part feeds paper, it begins to count with photoelectric technology. It also can set up a certain batches to feed paper and freely control the interval time between two batches. So it’s very simple to operate. 4.Quick speed and the middle grade paper box can produce 20000~30000 boxes hourly.
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 1




Main Technical Index:
1.Max Line Speed: 180 m/ min; 2.Suitable paper medium: 210 ~ 600 g/m2; 3.Pasting basic mode: Edge pasting in general (two sides are also OK) 4.Paper feeding mode: Automatically and continuously 5.Using adhesive: Solvent 6.Required Power: AC220
Item
Value
Product Name
Automatic Folder Guler Machine
MaxLine Speed
180m/ min
Suitable PaperMedium
210~ 600g/m2
Pasting BasicMode
Edge pasting in general two sides are also OK
PaperFeeding Mode
Automatically and continuously
Using Adhesive
Hot melt adhesive or Cold glue
Total Power
approx AC 220V/380V,22 KW
Total Weight
approx 1500Kg
Overal Dimension
8000*900*1300mm
Counting range
Full-automatic counting
Company Profile
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 2
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 3
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 4
Jiangsu Finest Technology Co., Ltd.
Is a company dedicated to the research, development, production and sales of aluminum foil products and aluminum foil product machine related products. More than 27 years of advanced production management experience in the aluminum foil machine production line, with a wide range, good quality, reasonable price and fashionable design. For example, aluminum foil for food packaging, hairdressing foil, barbecue paper, large aluminum foil roll, aluminum foil container, aluminum foil rewinder, manual aluminum foil cutter and aluminum foil container production line. With the pace of globalization, our company spares no effort to become a first-class supplier of such products.
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 5
Exhibition
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 6
Cooperative Customers
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 7
Packing & Delivery
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 8
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 9
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 10
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 11
FAQ
1. Are you trading company or manufacturer ? We are factory.
2.What kind of terms of payment? T/T, L/C,D/A,D/P,Western Union are available.
3.Can you do Customization & Reproduction if I provide a photo? Yes, we do Customization & Reproduction service, please check the details and sample above. You need to send the pictures to our email, tell us the specification you want, Then we will quote you exact price.We will take photos for you check.
4.Does the packaging safe and arrive in good conditions? Yes, Safe Packing guarrantee, all the products will arrive your door under good conditions. We response to problem of shipping if there unfortunately is.
5.How long does it usually take to deliver the product? We'll make the shipment to you immediately.It will take about 18 to 40 days arrive worldwide. Accurate delivery time depends on the specific quantity
6.Is drop shipping abailable? Yes, it is, we can send to worldwide."
Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding 12
