Product Details:
|
| Warranty: | 4 Years | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Restaurant, Food Shop | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
| Condition: | New | Application: | Food |
| Packaging Type: | Case | Packaging Material: | Wood |
| Automatic Grade: | Semi-automatic | Driven Type: | Electric |
| Voltage: | 380V | Power: | 3KW |
| Weight: | 850 KG | Dimension(L*W*H): | 1370*1550*900mm |
| Key Selling Points: | Easy To Operate | Product Name: | Paper Rewinding Machine |
| Main Machine Size: | 1520*1280*1000mm | Thickness Of Raw Material: | 0.009-0.03mm |

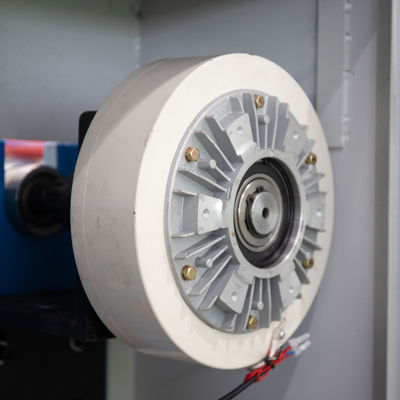

| Width Of Raw Materia: | 120-500mm | Magnetic Powder Cluch: | 100N.m |
Item | Value |
Product Name | Aluminum Foil Rewinding Machine |
Thickness of Raw Material | 0.009—0.03mm |
Width of Raw Material | 120-500mm |
Maximun Unwinding Diameter | ф1100mm |
Inner Diameter of Raw Material Roll Core | ф75mm |
Inner Diameter of Finished Product Roll Core | ф35mm. ф38mm ф40mm |
Cutting Length of Roll | 30- -500m |
Production Efficiency | 4-5m Per second |
Decoil Centering Stroke | +/-20mm |
Air Pressure | 0.5Mpa |
