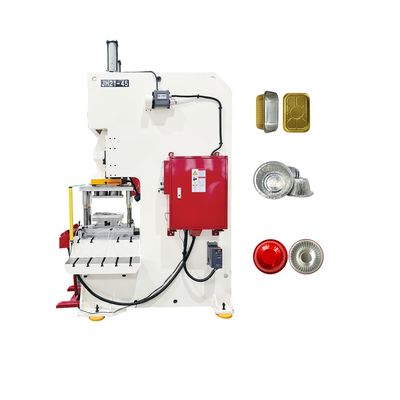

Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm

Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm

Large Image :  Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Finest
Model Number: AF-63AT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $29,000.00/sets 1-1 sets
Packaging Details: wooden tray,film
Supply Ability: 5 Set/Sets per Month
Contact Now

Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm

Description
Condition: New Machine Type: Punching Machine
Slide Stroke (mm): 260mm Power Source: Mechanical
Voltage: 380V Dimension(L*W*H): 2300mm*1600mm*3300mm
Motor Power (kW): 11kw Weight (T): 6.3
Key Selling Points: High Safety Level Warranty: 4 Years
Applicable Industries: Manufacturing Plant Showroom Location: None
Marketing Type: Hot Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 4 Years
Core Components: PLC After-sales Service Provided: 4 Years
Product Name: Aluminum Foil Takeaway Containers Making Machine Main Motor Power: 11KW

Product Description
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 0

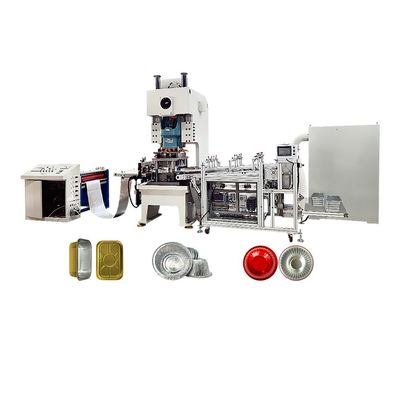

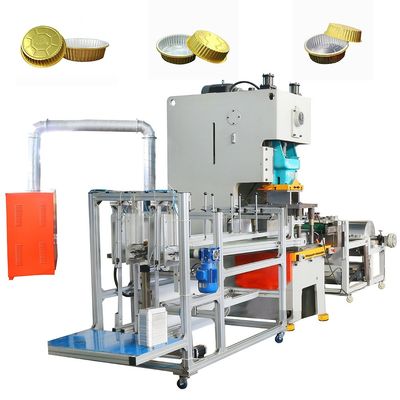

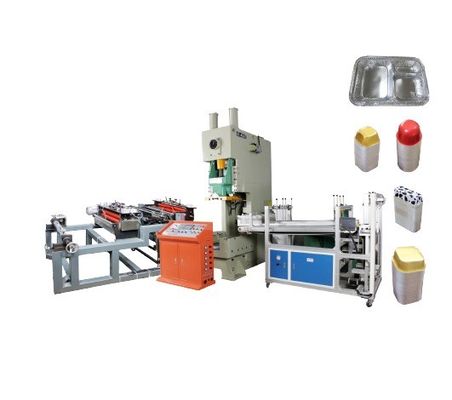

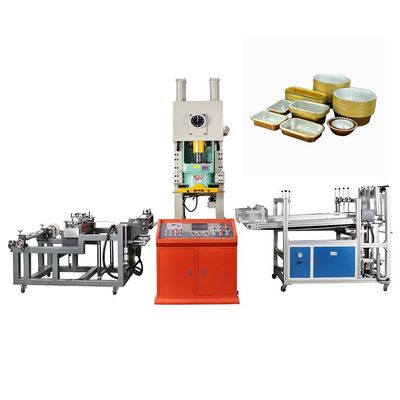

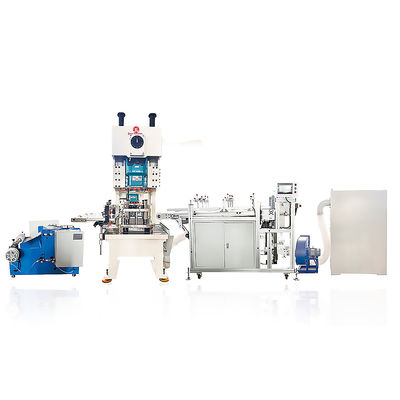

Fully automatic aluminum foil container making machine
Components：1. Automatic decocter and feeding head. 2.Siemens motors, Mitsubishi PLC, ABB Inverter
3. 45 ton Ward brand open type
punching machine
4. Mold.
5. Automatic stacker, 1-4 lanes (optional).
6. Scrap suction machine and press.
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 1

Automatic feeding machine

1-Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment. 2- One machine can realize automatic oiling, automatic feeding, the length of an arbitrary set, it provide accurate positioning and widely adjusting range. The device has the characteristics of feeding accuracy, coating the oil evenly, material waste is small, high efficiency, clean appearance, small size and easy installation, simple operation and low noise
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 2

punching machine

1-High performance presses are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses
and meters,medical equipment,electrical home appliance and hardware. 2-Square figure long guide with six friction faces makes
abrasion resistant and punching precision, drives stably with low noise and long service life.
3-PLC electric control system is
safe and reliable.
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 3

Automatic stacker, 1-4 lanes (optional)

1-It is a assist system to collect containers. 1-Frequency control speed adjustment of conveyor.
2-Auto-counting function.
3-Container platform anticollision function
4-Can connect production line linkage or single use.
5-Adopt touch screen and PLC
computer control. 6-Lifting table adopt stepper and ball screw table.
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 4
The moulds we can design and produce are as follows:
1.The molds that we design and produce are suitable for almost every kind of machine or press. 2. We produce mold with the best
quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure molds
are in top quality and long life. 3. We can design and produce the mold in multi-cavities, 1, 2, 3, 4 cavities or more.no matter
it is one compartment container or multi-compartments container. 4. We can print your preferred logos upon request. 5.Scientific
design make the Cutting Scrap Rate under good control. 6. Container shapes: square, rectangular,

The advantages as below:

1.Top Safety and long lifetime,high precision control of feeding step and speed. 2.Add oiling device (stamping oil) to save cost
3.Wet clutch, long service life, low noise
4.The replacement of the mold is convenient and easy to change.
5.It’s suitable for large size single cavity,medium and small size multi-cavity molds.
6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.
Specification
Item
value
Condition
New
Brand Name
Finest
Dimension(L*W*H)
5020*1600*3300
Weight
8000KG
Voltage
380v/50Hz
Power
Feeding Machine Power:1.5KW,
Double Track Collector Power:3KW,
Press Power:11KW
Machinery Capacity
40-80pcs/min(1cavity),80-160pcs/min(2cavities)
Key Machines
Feeding Machine, Press Dimension, Double Track Collector, Scrap Baler Machine
Product packaging
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 5
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 6
1.before packing,We must test the machine and mold to run properly.
2.Stable package,professional and skilled loader reduce damage of product during transport.
3.we fixed our machine in container which will be protected well during shipping.
4.we use the wooden cabinet, protect the machine and mold during shipping.
Company Profile
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 7
Jiangsu Finest Technology Co., Ltd is a company dedicated to the research, development, production and sale of aluminum foil related products, such as aluminum foil for food packing, hairdressing
foil, silicone oil, barbecue paper, aluminum foil jumbo roll, aluminum foil containers, aluminum foil rewinding machines, and
manual aluminum foil cutting machines and aluminum foil container production lines. With the pace of globalization, our company
spares no effort in becoming a first-class supplier of such product Besides.
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 8
we also manufacture
1) Aluminum foil container machines;
2) Aluminum foil roll machines;
3) Slitters & rewinders;
4) Cross cutting machines;
5) Aluminum foil scrap balers;
6)Automatic carton sealers;
7) Aluminum flexible duct machines;
8) Aluminum container molds.
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 9
Certifications
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 10
Customer Photos
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 11
FAQ
1. Are you trading company or manufacturer ? We are factory.
2.What kind of terms of payment? T/T, L/C,D/A,D/P,Western Union are available.
3.Can you do Customization & Reproduction if I provide a photo? Yes, we do Customization & Reproduction service, please check the details and sample above. You need to send the pictures to our email, tell us the specification you want, Then we will quote you exact price.We will take photos for you check.
4.Does the packaging safe and arrive in good conditions? Yes, Safe Packing guarrantee, all the products will arrive your door under good conditions. We response to problem of shipping if there unfortunately is.
5.How long does it usually take to deliver the product? We'll make the shipment to you immediately.It will take about 18 to 40 days arrive worldwide. Accurate delivery time depends on the specific quantity
6.Is drop shipping abailable? Yes, it is, we can send to worldwide.
Punching Machine for Aluminum Foil Food Container Production in 2300mm*1600mm*3300mm 12
