Product Details:
|
| Warranty: | 4 Years | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Restaurant, Food Shop | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
| Condition: | New | Packaging Type: | Case |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380v |
| Power: | 18kw | Weight: | 5800 KG |
| Dimension(L*W*H): | 3700 *1800*1500mm | Key Selling Points: | Easy To Operate |

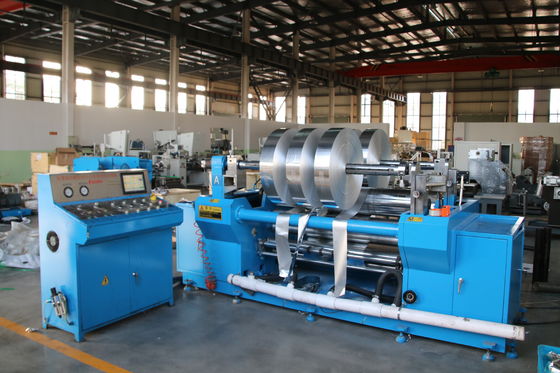

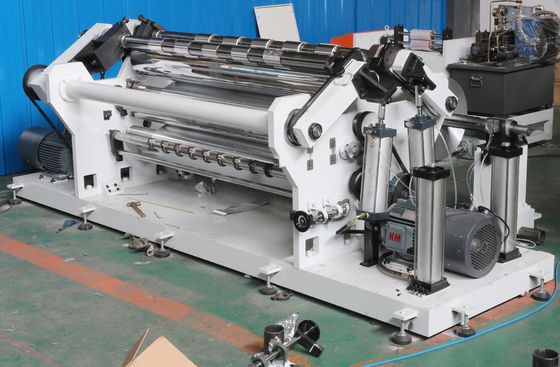

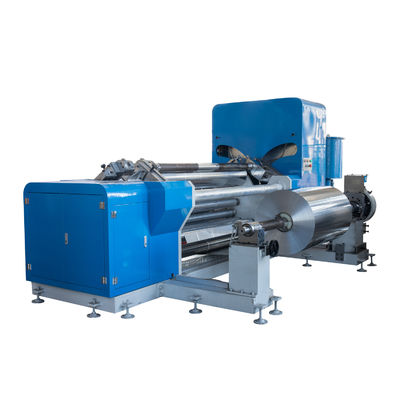

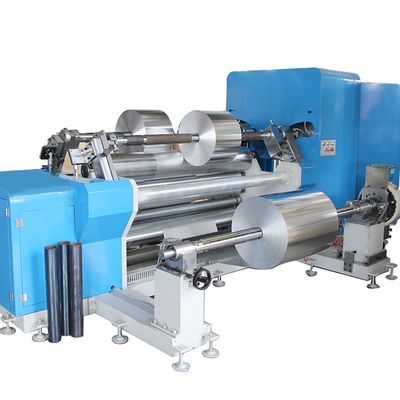

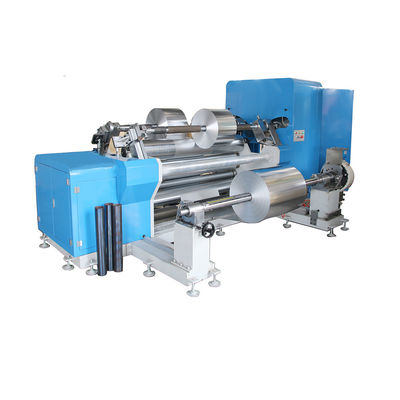

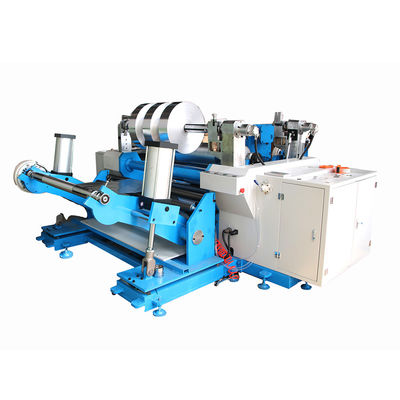

| Product Name: | Aluminum Foil Slitting Machine | Product Type: | FDF-1650 |
| Thickness Of Raw Material: | 0.006 -0.15mm | Width Of Raw Material: | 120 -1600mm |
| Power Supply: | 380V, 50Hz, 3ph | Air Pressure: | 0.6Mpa |
| Port: | Shanghai |
Item | Value |
Product Name | Aluminum Foil Slitting Machine |
Raw Material | Aluminum Foil |
Width of Raw Material | 120 -1600mm |
Maximun Unwinding Diameter | 800mm |
Maximun Weight of Raw Material | 800KG |
Inner Diameter of Raw Material Roll Core | 76mm |
Inner Diameter of Finished Product Roll Core | 76mm |
Minimum Width of Finished Product | 50mm |
Width error of finished product | +/- 0.1mm |
Maximum winding diameter | 600mm |
